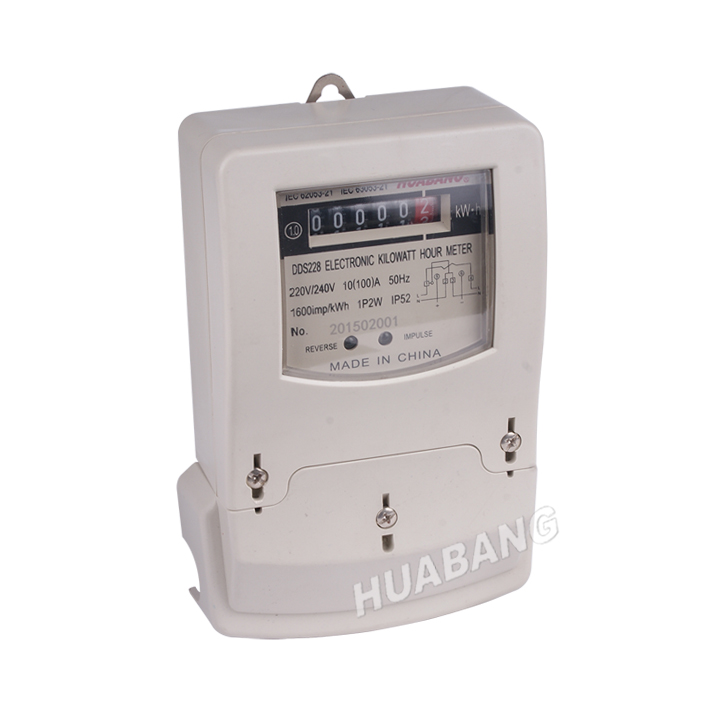

Single Phase Extended Terminal Energy Meter

Model No.: DDS228 ( Extended )

Specification: Single Phase Two Wire

Maximum Current: 60A

Display: Analog 5+1 digits

Usage: 50Hz or 60Hz Active Energy Consumption ( Class 1.0 / 2.0 )

Life Span: 10 Years

Size: 202x110x58 mm

  • Description

DDS228  Single Phase ExtendedTerminal Energy Meter

Product Description


Single phase two wire watt hour meter used to measure 50/60Hz active energy consumption ( kWh )

It has good resistance electromagnetic interference performance, low power loss,

Three screws fix or board mounted; Using advanced technology, ensure quality, stability and long life time use


Dimension: 202x110x58mm

Display:Analog display 5+1digits ( 99999.9 kWh )

Impulse: 1600imp/kWh Change according to the ampere

Standard configuration pulse output passive ( polarity )

Standard working voltage: AC220V ~ AC240V ,  50Hz  (Frequency)

Current: 5(20); 10(40); 15(60); 20(80); 30(100)

Non-volatile memory have at least retention energy data for 10 years

Running with no load:  Un 85~115% it should not have more than one pulse

Starting current: Class 1.0  0.4%Ib ;  Class 2.0   0.5%Ib,  According to IEC62052-11:2003; IEC62053-21:2003

Factory Production Stardard: ISO9001:2008

Meter testing protocol: CE-LVD   CE-EMC

Optional Function

1.Different voltage range: 110V or 120V  Frequency: 50 or 60Hz

2. Meter Case: AS, ABS, PC, Anti flaming

3. Connection diagram:  LLNN  or  LNNL

Our Services

We supply product with good quality and serivces as:

1. OEM

2. ODM

3. HUABANG Distributor

Meter Diagram and Meter connection:

The picture is for reference only. Please adhere to the original products in case of any mistake!

Packaging & Shipping

MOQ 1pcs
Package 100pcs per carton
Size 46.5x26x27mm
Gross Weigth 13Kg
