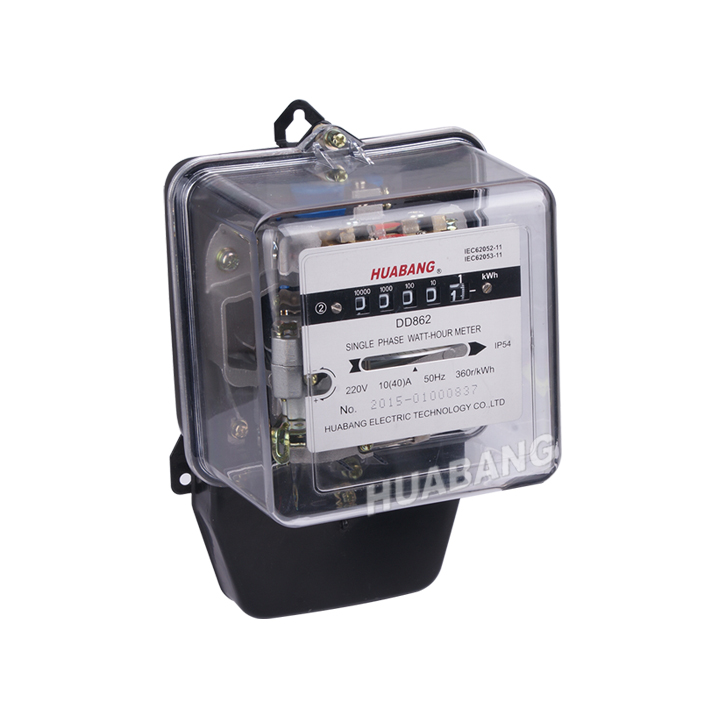

Single Phase Mechanical Kwh Meter

Model No.: DD862

Specification: Single Phase Two Wire

Meter Type: Mechanical

Display: Analog, 4+1 digits or 5+1 digits, Eg.: 12345.6kWh

Usage: 50Hz or 60Hz Active Energy Consumption

Life Span: 10 Years

  • Description

DD862 Single Phase Prepayment Energy Meter

Product Description



Wall mounted

Enclosure Material:

Bakelite Anti-flaming Casing and Base

Energy Record :

1. The Non-volatile memory shall have a minimum retention time of 10 years

2. Active energy consumption


1. GB/T15283-2008 ; IEC62053-11


Direct connection Up to 100A


Type DD862
Accuracy Class 2.0
Rated Voltage (V) 110, 220, 230, 240
Rated Current (A) 1.5(6), 5(20), 10(40), 15(60), 20(80), 30(100)
Overload Capacity 400%Ib
Starting Current 0.5%Ib
Insulation Performance AC Voltage 2kV for 1minute,1.2/50 μs waveform impulse voltage 6kV

Our Services

We supply product with good quality and serivces as:

1. OEM

2. ODM

3. HUABANG Distributor

Packaging & Shipping

MOQ 1pcs
Package 100pcs per carton
Size 46.5x26x27mm
Gross Weigth 13Kg
