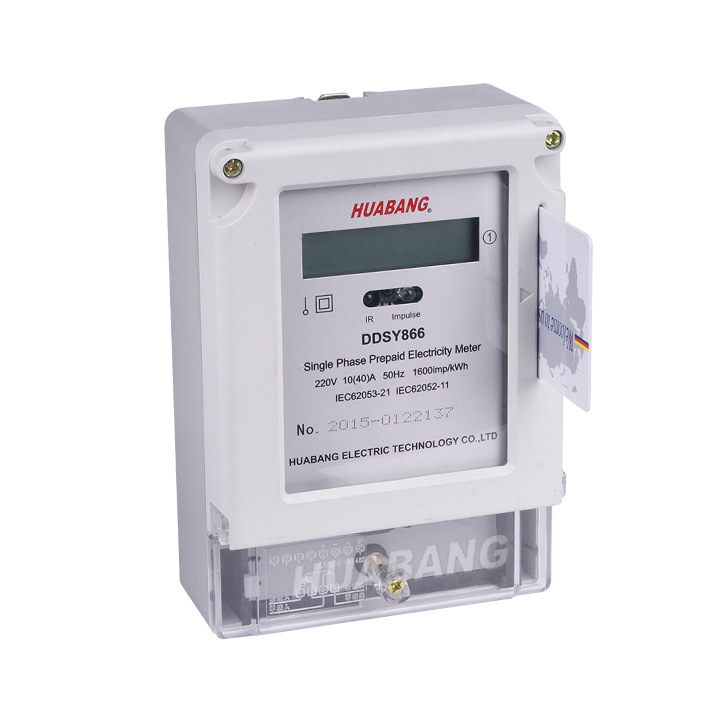

Single Phase Prepayment Energy Meter

Model No.: DDSY866


Specification: Single Phase Two Wire


Meter Type: Electronic


Display: LCD, 6+1 digits, Eg.: 123456.7 kWh


Usage: Buy electricity FIRST, USE second, after run out of power if the user does not continue to buy electricity, the meter will automatically cut off.

Life Span: 10 Years


Size: 156x110x62.5mm

  • Description


DDSY866 Single Phase Prepayment Energy Meter



Product Description



Application:


Mounted:

Wall mounted, Three screw fixed installation

Enclosure Material:

ABS Anti-flaming with PC transparent window Anti-UV

Energy Record :

1. The Non-volatile memory shall have a minimum retention time of 10 years

2. Forward and Reverse Active energy consumption

Standard :

1. IEC62052-11: 2003 ; IEC62053-21:2003

Connection:

1. Direct connection Up to 100A

2. Current Transformer Type 1.5(6)A

More Functions

1.Load control, over-load automatically switch off, protect product been damaged

2.Large-capacity magnetic latching relay control, measure energy in security mode.

3.Electricity price settable, easy to manage and adjustment.

4. Anti-tampering


Technical Parameters:


Accuracy
Class 1.0
Rated voltage
220V,  230V,  240V    110V( optional )
Operation voltage range
Un±20%
Insulation capabilities

AC voltage withstand 2kV for 1 minute

Impulse voltage withstand 4kV - 1.2/50μs waveform

Rated current
1.5(6), 5(20), 10(40)A, 15(60), 20(80), 30(100).
Operation current range
0.05Ib~ Imax
Starting current
0.004Ib
Rated frequency
50Hz or 60 Hz
Internal power consumption
Voltage Circuit ≤1.0W 5VA; Current Circuit ≤1VA(Ib)
Interface
Optical coupler (So corresponding to DIN 43864)
Impulse valence Ra
0,5 or 1.0 Wh/imp
Max. operation temperature
-25°C ~ +70°C
Relative humidity
≤ 85%



Our Services


We supply product with good quality and serivces as:


1. OEM

2. ODM

3. HUABANG Distributor



Packaging & Shipping


MOQ 1pcs
Package 100pcs per carton
Size 46.5x26x27mm
Gross Weigth 13Kg
