Single Phase Credit Energy Meter

Model No.: DDSY866

Specification: Single Phase Two Wire

Meter Type: Electronic

Display: LCD, 6+1 digits, Eg.: 123456.7 kWh

Usage: Buy electricity FIRST, USE second, after run out of power if the user does not continue to buy electricity, the meter will automatically cut off.

Life Span: 10 Years

Size: 156x110x62.5mm

: DDSY866

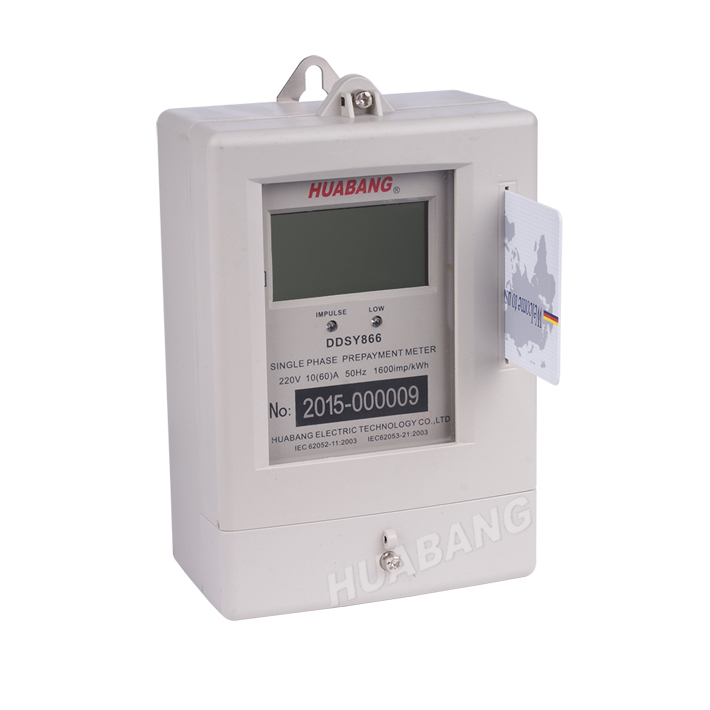

DDSY866 Single Phase Prepayment Energy Meter

Product Description

Application:

Mounted:

Wall mounted, Three screw fixed installation

Enclosure Material:

ABS Anti-flaming with PC transparent window Anti-UV

Energy Record :

1. The Non-volatile memory shall have a minimum retention time of 10 years

2. Forward and Reverse Active energy consumption

Standard :

1. IEC62052-11: 2003 ; IEC62053-21:2003

Connection:

1. Direct connection Up to 100A

2. Current Transformer Type 1.5(6)A

More Functions ：

1.Load control, over-load automatically switch off, protect product been damaged

2.Large-capacity magnetic latching relay control, measure energy in security mode.

3.Electricity price settable, easy to manage and adjustment.

4. Anti-tampering

Technical Parameters:

Accuracy	Class 1.0
Rated voltage	220V, 230V, 240V 110V( optional )
Operation voltage range	Un±20%
Insulation capabilities	AC voltage withstand 2kV for 1 minute Impulse voltage withstand 4kV - 1.2/50μs waveform
Rated current	1.5(6), 5(20), 10(40)A, 15(60), 20(80), 30(100).
Operation current range	0.05Ib~ Imax
Starting current	0.004Ib
Rated frequency	50Hz or 60 Hz
Internal power consumption	Voltage Circuit ≤1.0W 5VA; Current Circuit ≤1VA(Ib)
Interface	Optical coupler (So corresponding to DIN 43864)
Impulse valence Ra	0,5 or 1.0 Wh/imp
Max. operation temperature	-25°C ~ +70°C
Relative humidity	≤ 85%

Our Services

We supply product with good quality and serivces as:

1. OEM

2. ODM

3. HUABANG Distributor

Packaging & Shipping

MOQ	1pcs
Package	100pcs per carton
Size	46.5x26x27mm
Gross Weigth	13Kg
