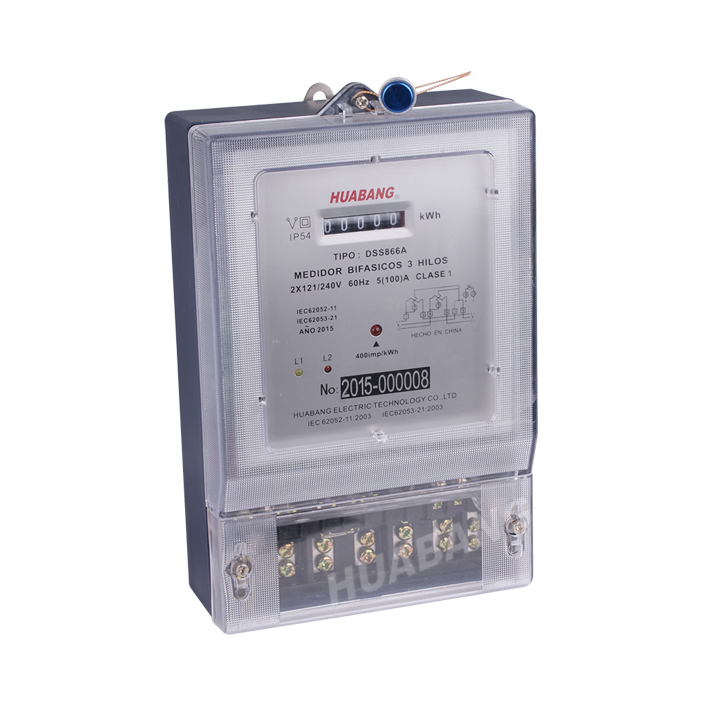

DSS866A  Three Phase Three Wire Electronic Watt Hour Meter

Product Description

Application:

Mounted:

Wall mounted, Three screw fixed installation

Enclosure Material:

ABS Anti-flaming with PC transparent window Anti-UV

Energy Record :

1. The Non-volatile memory shall have a minimum retention time of 10 years

2. Forward and Reverse Active energy consumption

Standard :

1. IEC62052-11: 2003 ; IEC62053-21:2003

Connection :

1. Direct connection Up to 100A

2. Current Transformer Type 1.5(6)A

Communication:

RS485 & Infrared (Optional)

By RS485 cable within 1000m you can read energy data

Technical Parameters:

Accuracy	Class 1.0
Rated voltage	3*57/110, 3*110/220, 3*220/380, 3*230/400, 3*240/415, etc
Operation voltage range	Un±20%
Insulation capabilities	AC voltage withstand 2kV for 1 minute Impulse voltage withstand 4kV - 1.2/50μs waveform
Rated current	3*1.5(6)A, 3*5(30)A, 3*10(60)A, 3*20(80)A, 3*30(100)A
Operation current range	0.05Ib~ Imax
Starting current	0.004Ib
Rated frequency	50Hz or 60 Hz
Internal power consumption	Voltage Circuit ≤1.0W 5VA; Current Circuit ≤1VA(Ib)
Interface	Optical coupler (So corresponding to DIN 43864)
Impulse valence Ra	0,5 or 1.0 Wh/imp
Max. operation temperature	-25°C ~ +70°C
Relative humidity	≤ 85%

Our Services

We supply product with good quality and serivces as:

1. OEM

2. ODM

3. HUABANG Distributor

Packaging & Shipping

MOQ	1pcs
Package	100pcs per carton
Size	46.5x26x27mm
Gross Weigth	13Kg
