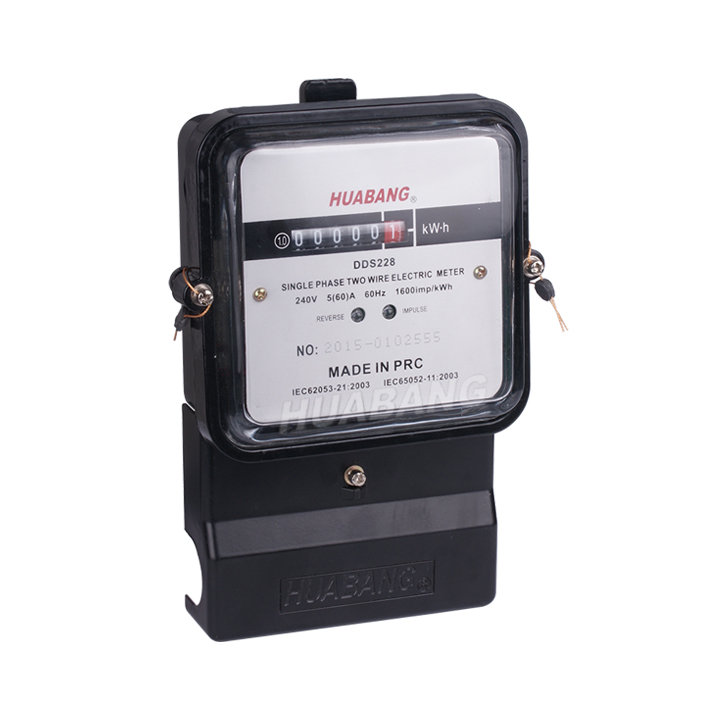

Aluminum Single Phase Watt Hour Meter

Model No.: DDS228


Specification: Single Phase Two Wire


Maximum Current: 10-60A


Display: Analog 5+1 digits ( Anti Reverse )


Usage: 60Hz Active Energy Consumption ( Class 1.0 )


Life Span: 10 Years


Size: 202x110x58 mm

  • Description


DDS228  Asia Aluminum Single Phase Watt Hour Meter  ( Extended Terminal Cover )



Product Description


Application:


Single phase two wire watt hour meter used to measure 60Hz active energy consumption ( kWh )

It has good resistance electromagnetic interference performance, low power loss,

Three screws fix or board mounted; Using advanced technology, ensure quality, stability and long life time use

Meter Base and loop and terminal cover is made by Aluminum ( Anti-rust )

Meter Window is made by tough glass protect from sunshine ( Anti-UV )


Specification:


Dimension: 202x110x58mm

Display:Analog display 5+1digits ( 99999.9 kWh )

Impulse: 1600imp/kWh

Standard configuration pulse output passive ( polarity )

Standard working voltage: AC240V ,  60Hz  (Frequency)

Current: 10(60)A

Non-volatile memory have at least retention energy data for 10 years

Running with no load:  Un 85~115% it should not have more than one pulse

Starting current: Class 1.0  0.4%Ib According to IEC62052-11:2003; IEC62053-21:2003

Factory Production Stardard: ISO9001:2008

Meter testing protocol: CE-LVD   CE-EMC


Optional Function


1. Different voltage range: 110V or 120V  Frequency: 50 or 60Hz

2. Meter Case: AS, ABS, PC, Anti flaming, Steal Case, Aluminum Case

3. Connection diagram:  LLNN  or  LNNL

4. Shunt or Current Transformer ( Better Accuracy )

5. Voltage Transformer or RC ( Resistance-Capacitance Voltage Units )



Our Services


We supply product with good quality and serivces as:


1. OEM

2. ODM

3. HUABANG Distributor


Meter Diagram and Meter connection:

The picture is for reference only. Please adhere to the original products in case of any mistake!



Packaging & Shipping


MOQ 1pcs
Package 100pcs per carton
Size 46.5x26x27mm
Gross Weigth 13Kg
