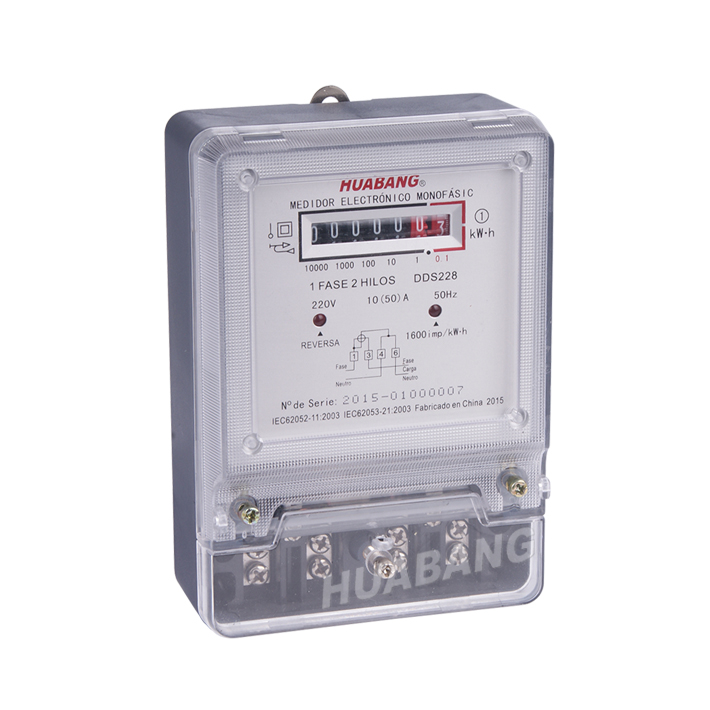

Single Phase 5+2 counter Energy Meter

Model No.: DDS228


Specification: Single Phase Two Wire


Maximum Current: 100A


Display: Analog 5+2 digits


Usage: 50Hz or 60Hz Active Energy Consumption ( Class 1.0  )


Life Span: 10 Years


Size: 155x110x58 mm

  • Description

DDS228  Single Phase Two Wire Mounted Electricity Meter  ( Register Display )


Product Description



Application:


Single phase two wire watt hour meter used to measure 50/60Hz active energy consumption ( kWh

It has good resistance electromagnetic interference performance, low power loss,

Three screws fix or board mounted; Using advanced technology, ensure quality, stability and long life time use



Specification:



Dimension: 155x110x58mm


Display:Analog display 5+2digits ( 99999.99 kWh )


Impulse: 1600imp/kWh Change according to the ampere


Standard configuration pulse output passive ( polarity )


Standard working voltage: AC220V ~ AC240V ,  50Hz  (Frequency)


Current: 5(20); 10(40); 15(60); 20(80); 30(100)


Non-volatile memory have at least retention energy data for 10 years


Running with no load:  Un 85~115% it should not have more than one pulse


Starting current: Class 1.0  0.4%Ib ;  According to IEC62052-11:2003; IEC62053-21:2003


Factory Production Stardard: ISO9001:2008


Meter testing protocol: CE-LVD   CE-EMC



Optional Function


1.Different voltage range: 110V or 120V  Frequency: 50 or 60Hz


2. Meter Case: AS, ABS, PC, Anti flaming


3. Connection diagram:  LLNN  or  LNNL



Our Services



We supply product with good quality and serivces as:


1. OEM


2. ODM


3.HUABANG Distributor



Meter Diagram






The picture is for reference only. Please adhere to the original products in case of any mistake!



Packaging & Shipping


MOQ 1pcs
Package 20pcs per carton
Size 47x30x40mm
Gross Weigth 13.5Kg
