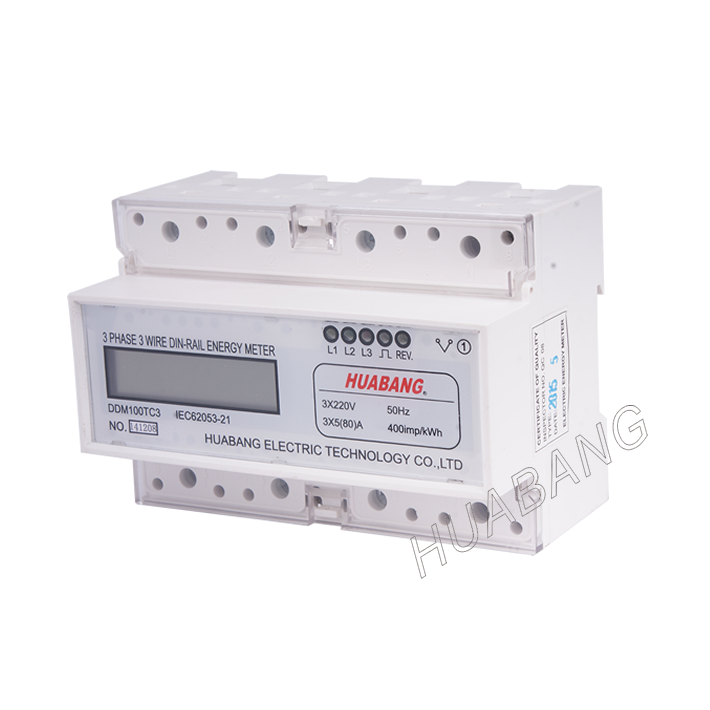

Three Phase Three Wire Analog Din Rail Kwh Meter

Model No.: DDM100T3


Specification: Three Phase Three Wire


Meter Type: Electronic


Display: Analog 6+1 digits, Eg.: 123456.7kwh


Usage: 50Hz or 60Hz Active Energy Consumption


Life Span: 10 Years


Size: 125x88x68mm

  • Description


DDM100T3 Three Phase Din Rail Energy Meter


Product Description



Product overview:


Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.
The DIN rail mounted electricity meters are available in two product lines: single phase metering and three phase metering.
The meters are available in several configurations to suite many applications.

With the increasing energy cost, measuring of the electricity consumption is getting more and more important.
If you can identify where you have your use you are one step closer to reducing your energy cost.
HUABANG have a complete range of DIN-mounted electricity meters for different applications, together with a wide range of communication options. The meters are quick and easy to install due to their DIN-rail mounting.




Application:



Three phase three wire DIN RAIL watt-hour meter is used to measure active energy consumption( kWh)

Din Rail energy meter is a new modern smart meter, three phase (7 modular) using advanced technology, ensure quality and stability, also has good resistance electromagnetic interference performance, low power consumption.

Advantages: small size, light weight, high precision, suitable for office building and shipping mall, Distribution box.



FUNCTIONS AND FEATURES


Mounted: Din-rail mounted, comply with standard DIN EN50022.

Enclosure Material: ABS Anti-flaming with PC transparent window Anti-UV

Energy Record: 1. The Non-volatile memory shall have a minimum retention time of 10 years

2. Forward and Reverse Active energy consumption

Standard: IEC62052-11: 2003 ; IEC62053-21:2003

Connection: Direct connection Up to 100A or chose CT operation ( 1.5-6A )

Communication: Communicate data collection via RS485 Modbus RTU protocol (Optional)



TECHNICAL PARAMETERS


Accuracy
Class 1.0
Rated voltage
3*57/110, 3*110/220, 3*220/380, 3*230/400, 3*240/415, etc
Operation voltage range
Un±20%
Insulation capabilities

AC voltage withstand 2kV for 1 minute

Impulse voltage withstand 4kV - 1.2/50μs waveform

Rated current
3*1.5(6)A, 3*5(30)A, 3*10(60)A, 3*20(80)A, 3*30(100)A
Operation current range
0.05Ib~ Imax
Starting current
0.004Ib
Rated frequency
50Hz or 60 Hz
Internal power consumption
Voltage Circuit ≤1.0W 5VA; Current Circuit ≤1VA(Ib)
Interface
Optical coupler (So corresponding to DIN 43864)
Impulse valence Ra
0,5 or 1.0 Wh/imp
Max. operation temperature
-20°C ~ +70°C
Relative humidity
≤ 85%


Our Services


We supply product with good quality and serivces as:


1. OEM

2. ODM

3. HUABANG Distributor

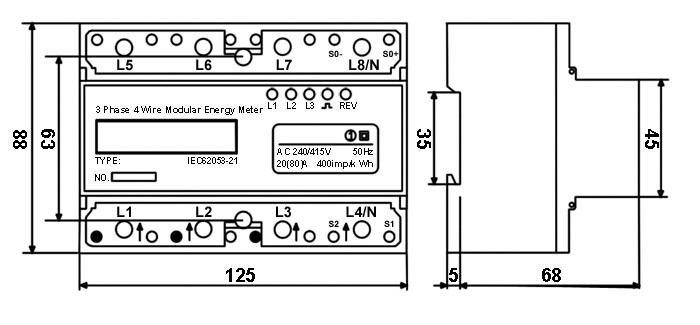

Meter Size Dimension

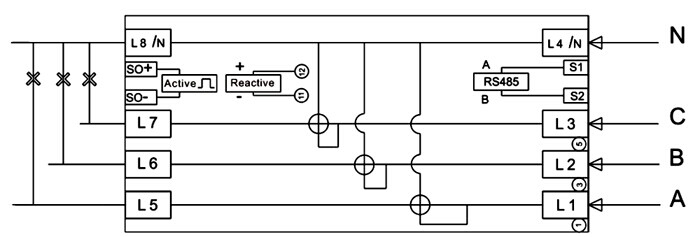

Meter Connection Diagram:





The picture is for reference only. Please adhere to the original products in case of any mistake!





Packaging & Shipping


MOQ

1pcs

Package

100pcs per carton

Size

46.5x26x27mm

Gross Weight

13Kg
