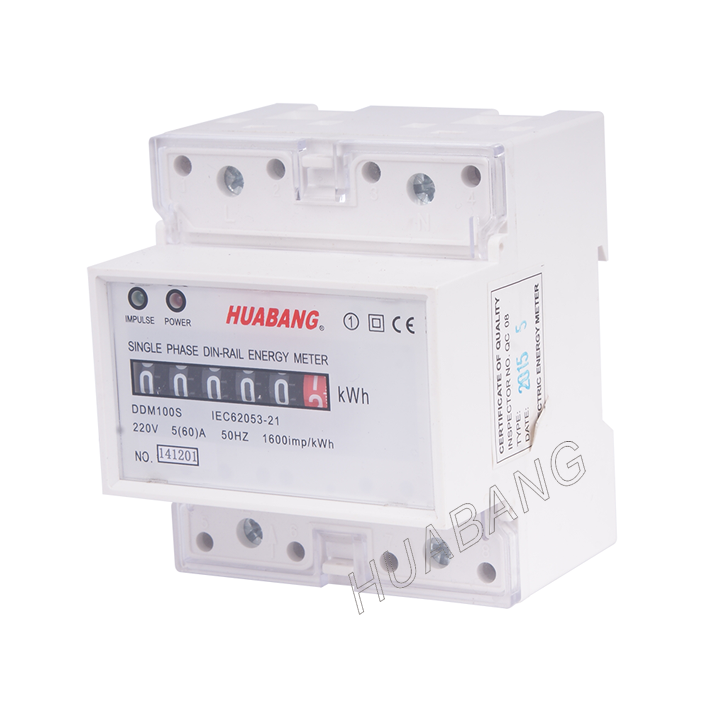

DDM100S Single phase Din Rail Energy Meter

Product Description

Product overview:

Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.
The DIN rail mounted electricity meters are available in two product lines: single phase metering and three phase metering.
The meters are available in several configurations to suite many applications.

With the increasing energy cost, measuring of the electricity consumption is getting more and more important.
If you can identify where you have your use you are one step closer to reducing your energy cost.
HUABANG have a complete range of DIN-mounted electricity meters for different applications, together with a wide range of communication options. The meters are quick and easy to install due to their DIN-rail mounting.

Application:

Single phase two wire DIN RAIL watt-hour meter is used to measure active energy consumption( kWh)

Din Rail energy meter is a new modern smart meter,single phase (4 modular) using advanced technology, ensure quality and stability, also has good resistance electromagnetic interference performance, low power consumption.

Advantages: small size, light weight, high precision, suitable for office building and shipping mall, Distribution box.

Specification:

The DDM100S is a modern designed power meter that will measure and display electrical power comsumption

Enclosure Material: ABS Anti-flaming with PC transparent window Anti-UV

Display: LED indicates power supply(Green), impulse(Red)

Runnning with no load: with 80% of reference voltage, it should not have more than one pulse

Starting current: 0.4%Ib ( Class1.0 )

Measurement & Accuracy

Forward and Reverse of active energy, cumulative total power consumption

Direct connection: Class 1.0/class B for active energy

Conform to IEC 62052-11:2003, IEC 62053-21:2003 CE-EMC CE-LVD

Current

Direct connection current range: 5(30)A, 10(40)A, 15(60)A, 20(80)A, 30(100)A

Short time over current: 30 times Imax for 0.5 cycles

Burden: <0.02VA/phase @Ib

Voltage & Power Supply

Nominal voltage: 230V.(±20%) Optional Working voltage: 120V(±20%),

Burden: <10VA/phase@ Un,2W

Rated frequencyrange:50Hz/60Hz (±5%)

Our Services

We supply product with good quality and serivces as:

1. OEM

2. ODM

3. HUABANG Distributor

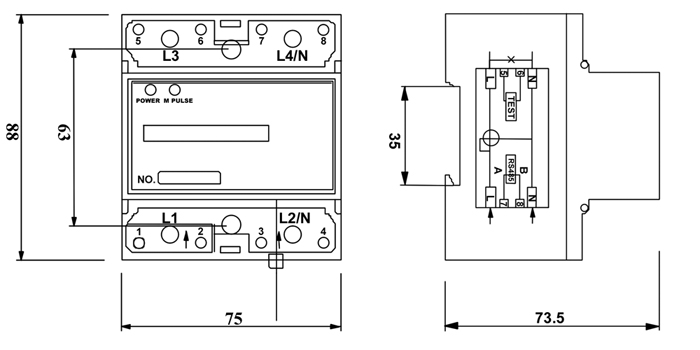

Meter Size Dimension:

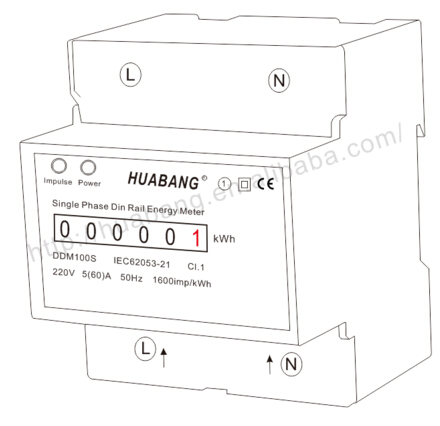

Meter Connection Diagram:

The picture is for reference only. Please adhere to the original products in case of any mistake!

Packaging & Shipping

MOQ	1pcs
Package	100pcs per carton
Size	46.5x26x27mm
Gross Weight	13Kg
